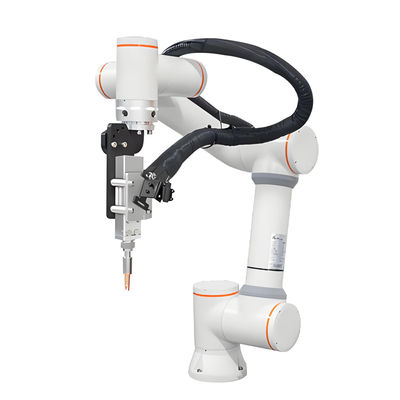

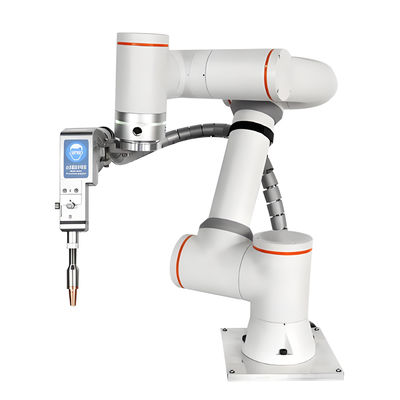

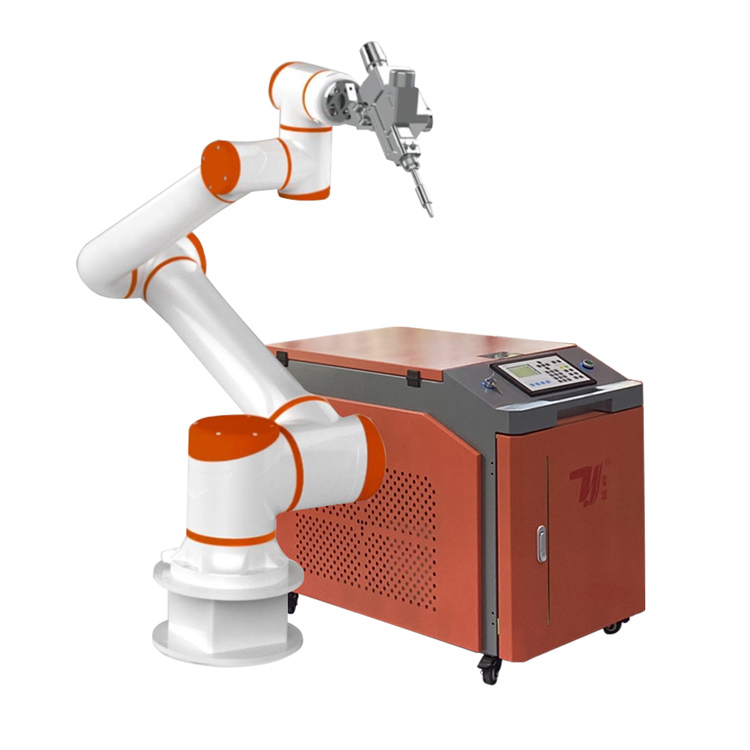

Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds

Büyük resim : Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	TAIYI
Sertifika:	CE
Model numarası:	TY-HS6018

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	Contact us for the price
Ambalaj bilgileri:	Dışa Aktar Standart Paketleme
Teslim süresi:	7-20 iş günü
Ödeme koşulları:	T/T, Western Union, MoneyGram, L/C
Yetenek temini:	500 parça

İletişim

Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds

Açıklama

Sertifika:	CE	Durum:	Yeni
Garanti:	2 Yıl	Uygulanabilir malzeme:	maden
Anahtar Kelimeler:	6 Eksen Kaynak Robotu	GELENEK:	Kabul etmek
Vurgulamak:	3000W robotic laser welding machine , laser welding machine with seam tracking , robotic welding machine for consistent welds

Hot Sale Fiber Laser Welding Machine with 6-axis Collaborative Cobot ,Multiple Sizes Are Available

Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds 4

TECHNICAL GUIDANCE FOR ONTOLOGY

Robotic Arm Parameters	MaxArmspan		1077mm
	Payload		7kg
	Repeat Positioning		±0.02mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		21kg
	Noise level		≤60dB
	Work port	1/0 Port	24V/18;DI:2D0:2AI
	Tool Pot	COM Port	24V/1A;1RS485:1 EtherCAT
Joint Movement Parameters	Iotion Range	J1	-360°“360°
		J2	-360°"360°
		J3	-165°“165°
		J4	-360°"360°
		J5	-360°360°
		J6	-360°“360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds 5

TECHNICAL GUIDANCE FOR ONTOLOGY

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		1460.7mm
	Payload		6kg
	Repeat Positioning		±0.05mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		22kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

Robotic Laser Welding Machine with Seam Tracking System, 3000W for Consistent Welds 6

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		2027mm
	Payload		20kg
	Repeat Positioning		±0.05mm
	ToolMax speed		4000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		1500W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		68kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	180°s
		J2	180°s
		J3	210°/s
		J4	270°/s
		J5	270°/s
		J6	270°/s
