Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision

Name: Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision
Brand: Taiyi Laser Technology Company Limited
SKU: TY-HS6018
Availability: InStock

Tüm ürünler

Lazer Kaynak Makinesi
(168)

Lazer kesme makinesi
(146)

Lazer İşaretleme Makinesi
(39)

Lazer Kaplama Makinesi
(8)

Robot Lazer Kaynak Makinesi
(125)

Lazer Temizleme Makinesi
(20)

Takı Lazer Makinesi
(13)

YAG Lazer Kaynak Makinesi
(5)

Pil Lazer Makinesi
(6)

Donanım Lazer Makinesi
(6)

Endüstriyel Lazer Makinesi
(2)

Diğer Lazer Ekipmanı
(78)

Lazer Makinesi Mutfak Banyo
(7)

En iyi ürünleri

Kanton Fuarı Tanıtım Klasik Otomatik 6 Eksenli Kimya Robotları

Üretim Hattı İçin Otomatik Robot Fiber Lazer Kaynak Makinesi

CNC 6 Eksenli Yaskawa Robotik Kol Lazer Kesme Makinesi İyi Fiyatla

Sertifika

Müşteri yorumları

Quality is your factory culture, Quickly response is your core! Keep it and let Taiyi brand laser machine around the world.

—— Upendra Patel

Kalite güvencesi!

—— Peter

Lazer markalama makinesinin mükemmel ürünü.

—— David Chow

Şirketinizin yedek parçalarının kalitesi daha önce aldığımdan daha iyi.

—— lakmal

Güzel bir alışveriş gezisi !!!

—— James Clark

Ben sohbet şimdi

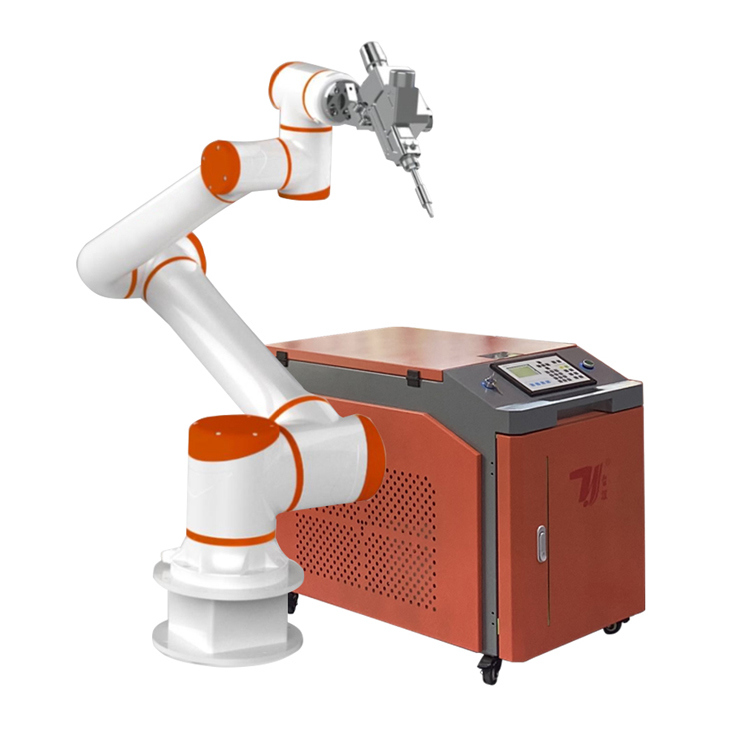

Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision

Büyük resim : Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	TAIYI
Sertifika:	CE
Model numarası:	TY-HS6018

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	Contact us for the price
Ambalaj bilgileri:	Dışa Aktar Standart Paketleme
Teslim süresi:	7-20 iş günü
Ödeme koşulları:	T/T, Western Union, MoneyGram, L/C
Yetenek temini:	500 parça

İletişim

Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision

Açıklama

Sertifika:	CE	Durum:	Yeni
Garanti:	2 Yıl	Uygulanabilir malzeme:	maden
Anahtar Kelimeler:	6 Eksen Kaynak Robotu	GELENEK:	Kabul etmek
Vurgulamak:	Cobot laser soldering machine 2000W , Precision laser welding for heat-sensitive components , Robot laser welding machine with warranty

Hot Sale Fiber Laser Welding Machine with 6-axis Collaborative Cobot ,Multiple Sizes Are Available

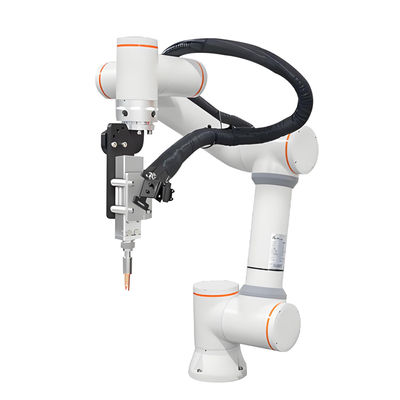

Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision 4

TECHNICAL GUIDANCE FOR ONTOLOGY

Robotic Arm Parameters	MaxArmspan		1077mm
	Payload		7kg
	Repeat Positioning		±0.02mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		21kg
	Noise level		≤60dB
	Work port	1/0 Port	24V/18;DI:2D0:2AI
	Tool Pot	COM Port	24V/1A;1RS485:1 EtherCAT
Joint Movement Parameters	Iotion Range	J1	-360°“360°
		J2	-360°"360°
		J3	-165°“165°
		J4	-360°"360°
		J5	-360°360°
		J6	-360°“360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

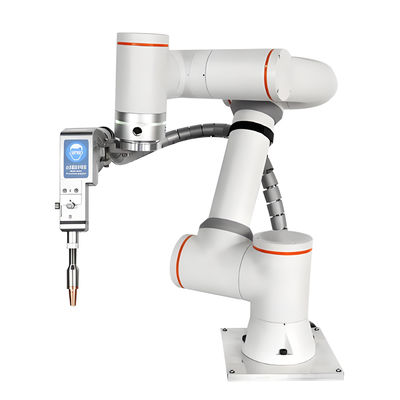

Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision 5

TECHNICAL GUIDANCE FOR ONTOLOGY

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		1460.7mm
	Payload		6kg
	Repeat Positioning		±0.05mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		22kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

Cobot Laser Soldering Machine for Heat-Sensitive Components, 2000W Precision 6

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		2027mm
	Payload		20kg
	Repeat Positioning		±0.05mm
	ToolMax speed		4000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		1500W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		68kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	180°s
		J2	180°s
		J3	210°/s
		J4	270°/s
		J5	270°/s
		J6	270°/s
